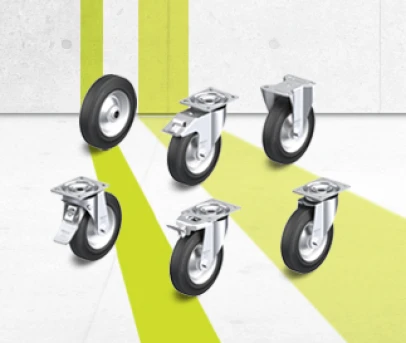

V series wheels, swivel castors and fixed castors
Wheels and castors with standard solid rubber tyres and pressed steel rim, reinforced version
The standard solid rubber tyre of the V series is pressed or bolted together with a stamped pressed steel rim and the bearing. The tyres have a hardness of 80 Shore A and provide a high level of operational comfort, good floor preservation and low-noise operation. In contrast to the VE wheel series, the V series is suitable for higher loads.
The V series is frequently used for manually operated transport units, as support wheels for trailers and in a wide range of small units.
The standard solid rubber tyre of the V series is pressed or bolted together with a stamped pressed steel rim and the bearing. The tyres have a hardness of 80 Shore A and provide a high level of operational comfort, good floor preservation and low-noise operation. In contrast to the VE wheel series, the V series is suitable for higher loads.
The V series is frequently used for manually operated transport units, as support wheels for trailers and in a wide range of small units.

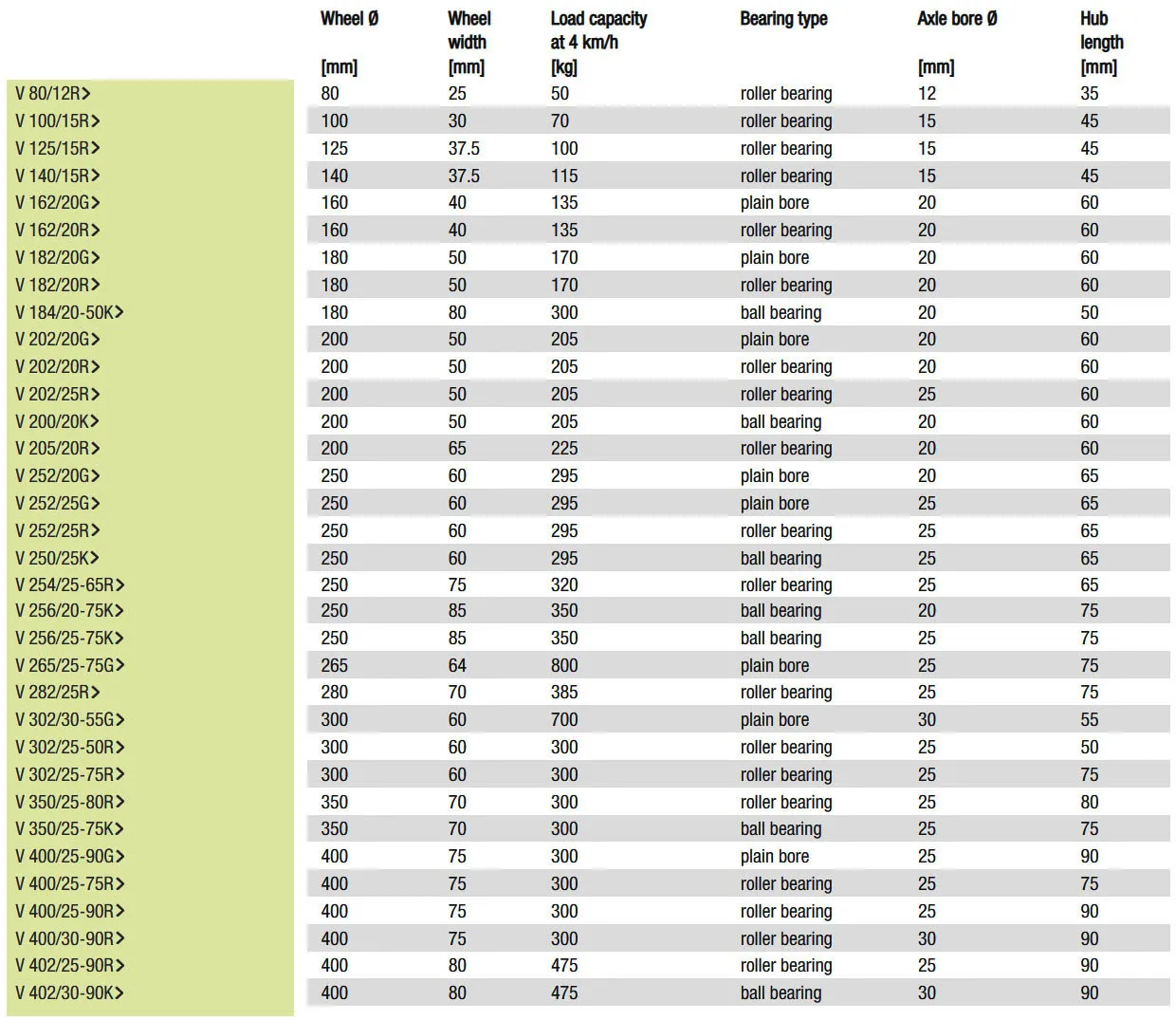

Wheels in the V series have diameters ranging between 80 and 400 mm with a roller bearing, ball bearing or plain bore. The wheels are also available with a non-marking grey tyre or with an electrically conductive design.

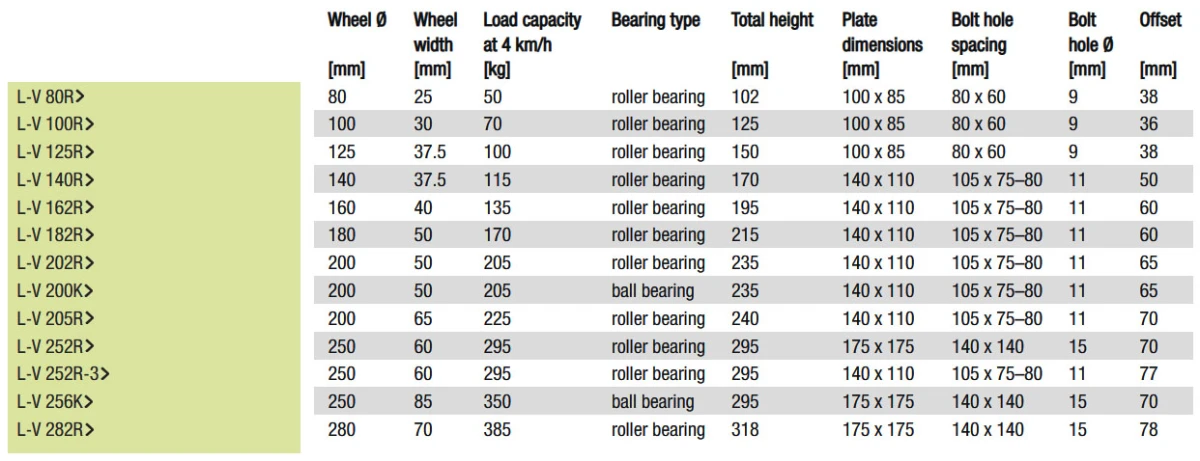

As standard, the wheels in the V series are available for the following bracket series with top plate fitting:
L series: Pressed steel swivel bracket with top plate fitting, medium duty design
L series: Pressed steel swivel bracket with top plate fitting, medium duty design

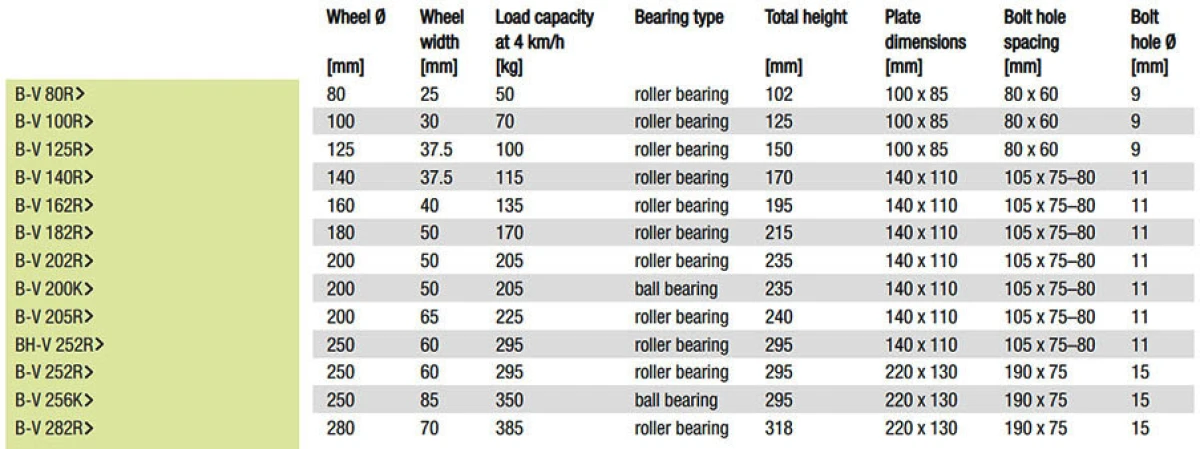

The V wheel series can be combined with the following fixed castor brackets:
B series: Pressed steel fixed bracket with top plate fitting, medium duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
B series: Pressed steel fixed bracket with top plate fitting, medium duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
