PATH Wheel and castor series
Wheels and castors with thermoplastic polyurethane tread and nylon wheel centre
Wheels and castors in the PATH series consist of a high-quality thermoplastic polyurethane tread (TPU) and an impact-resistant nylon wheel centre. The tread has a hardness of 94 Shore A and is cast onto the wheel centre. It is non-marking and non-staining. The tread has a very low level of rolling and swivel resistance, while also being highly abrasion-resistant.
The PATH series is frequently used for hygiene applications. The electrically conductive version is frequently used for medical devices to protect them against electric discharge.
The POTH series is preferred for higher load capacities.
Wheels and castors in the PATH series consist of a high-quality thermoplastic polyurethane tread (TPU) and an impact-resistant nylon wheel centre. The tread has a hardness of 94 Shore A and is cast onto the wheel centre. It is non-marking and non-staining. The tread has a very low level of rolling and swivel resistance, while also being highly abrasion-resistant.
The PATH series is frequently used for hygiene applications. The electrically conductive version is frequently used for medical devices to protect them against electric discharge.
The POTH series is preferred for higher load capacities.
The wheels in the PATH series come in sizes ranging between 50 and 200 mm in diameter as standard. They are also available with a ball bearing, roller bearing or plain bore. Electrically conductive versions are also available, in addition to versions with a thread guard and sealed ball bearing.
The PATH wheel series is available as standard with a variety of bracket series with a top plate fitting for a wide range of applications. These range from standard pressed steel swivel castors through to heavy duty pressed steel swivel castors.
LE series: Pressed steel swivel bracket with top plate fitting
L series: Pressed steel swivel bracket with top plate fitting, medium duty design
LK series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LE series: Pressed steel swivel bracket with top plate fitting
L series: Pressed steel swivel bracket with top plate fitting, medium duty design
LK series: Pressed steel swivel bracket with top plate fitting, heavy duty design
As an alternative to the plate fitting, the Blickle range also contains a bracket series with a bolt hole for the PATH series:
LER series: Pressed steel swivel bracket with bolt hole
LER series: Pressed steel swivel bracket with bolt hole

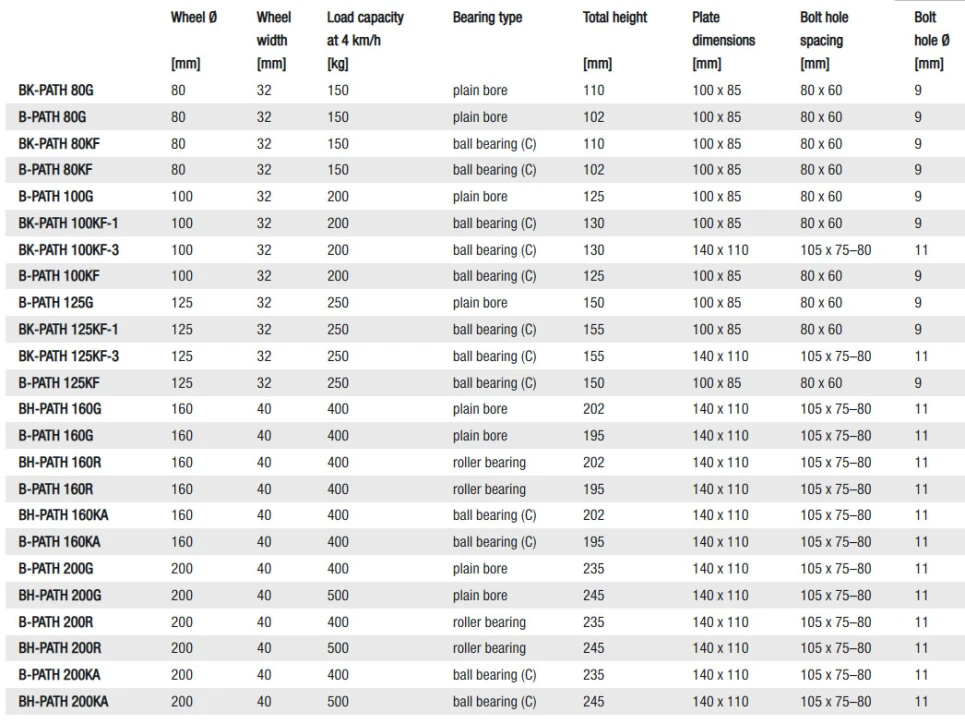

The PATH wheel series can be combined with a wide range of fixed bracket series:
B series: Pressed steel fixed bracket with top plate fitting, medium duty design
BK series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
B series: Pressed steel fixed bracket with top plate fitting, medium duty design
BK series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
