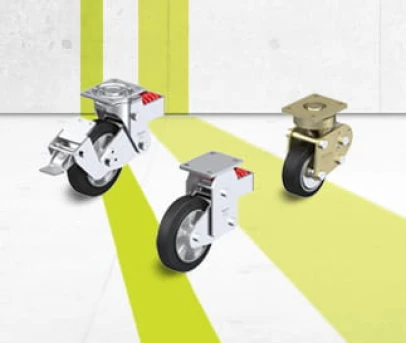

ALEV Spring-loaded castor series
Spring-loaded castors with elastic solid rubber tyres “Blickle EasyRoll” and aluminium wheel centre
The ALEV elastic solid rubber series is made of a vulcanised Blickle EasyRoll tread and a wheel centre made of die-cast aluminium. The vulcanised tread with a hardness of 65 Shore A provides a low level of rolling resistance, a high level of operational comfort, low noise operation and good floor preservation.
The ALEV wheels are available with the LHF bracket with steel spring in diameters between 100 and 200 mm. The ALEV wheels are available in the sizes 100, 125 and 150 mm in combination with the LPFE bracket with a polyurethane spring. Wheels with a non-marking grey tyre are also available.
Due to the aluminium wheel centre, the ALEV wheel series is also suitable for use at high speeds and is frequently used for the internal transport of sensitive goods in combination with spring-loaded bracket series.
The ALEV elastic solid rubber series is made of a vulcanised Blickle EasyRoll tread and a wheel centre made of die-cast aluminium. The vulcanised tread with a hardness of 65 Shore A provides a low level of rolling resistance, a high level of operational comfort, low noise operation and good floor preservation.
The ALEV wheels are available with the LHF bracket with steel spring in diameters between 100 and 200 mm. The ALEV wheels are available in the sizes 100, 125 and 150 mm in combination with the LPFE bracket with a polyurethane spring. Wheels with a non-marking grey tyre are also available.
Due to the aluminium wheel centre, the ALEV wheel series is also suitable for use at high speeds and is frequently used for the internal transport of sensitive goods in combination with spring-loaded bracket series.

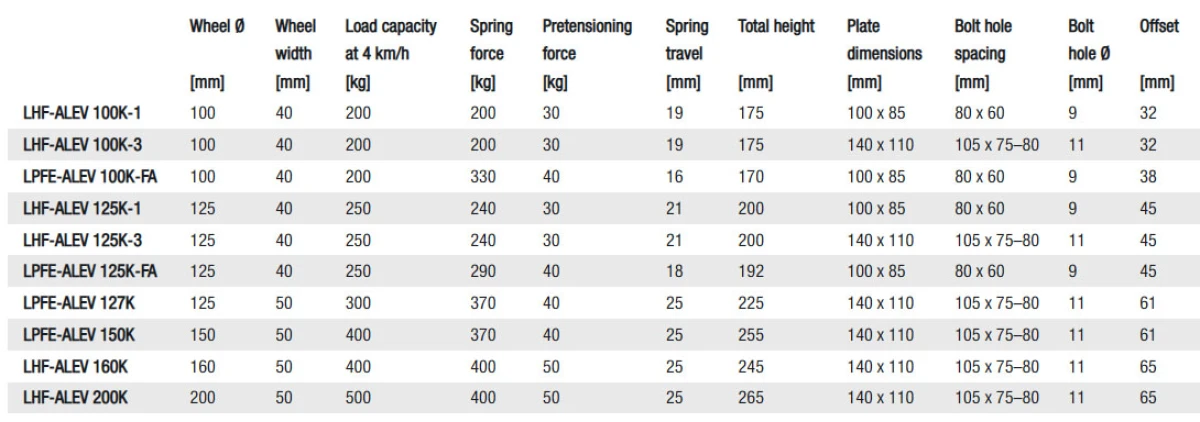

As standard, the ALEV wheel series is available with a range of spring-loaded bracket series with a top plate fitting. These vary in terms of their design and load capacity:
LHF series: Pressed steel swivel castor with top plate fitting, heavy duty design, with steel spring
LPFE series: Heavy duty swivel castor with top plate fitting, with polyurethane torsion spring
LHF series: Pressed steel swivel castor with top plate fitting, heavy duty design, with steel spring
LPFE series: Heavy duty swivel castor with top plate fitting, with polyurethane torsion spring

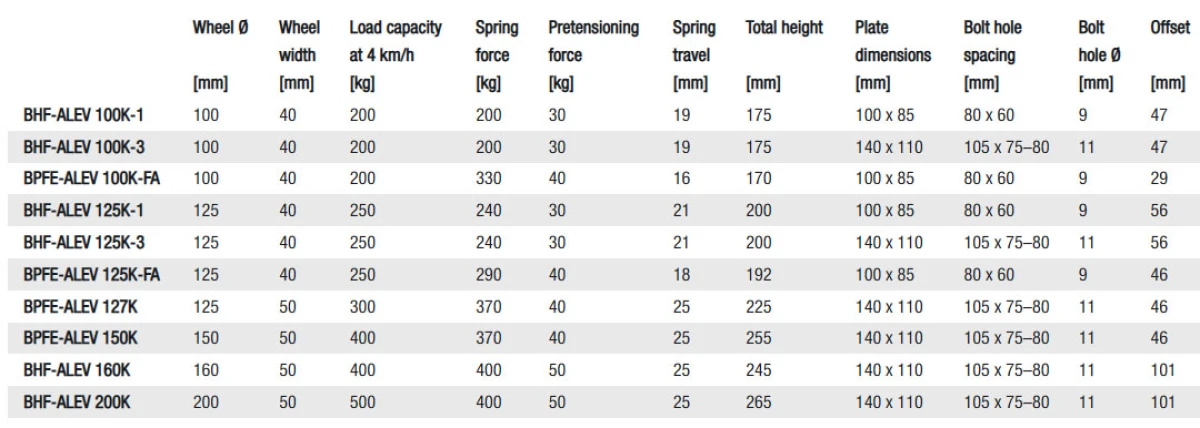

The ALEV wheels are available with a variety of spring-loaded fixed castor brackets:
BHF series: Pressed steel fixed castor with top plate fitting, heavy duty design, with steel spring
BPFE series: Heavy duty fixed castor with top plate fitting, with polyurethane torsion spring
BHF series: Pressed steel fixed castor with top plate fitting, heavy duty design, with steel spring
BPFE series: Heavy duty fixed castor with top plate fitting, with polyurethane torsion spring
