Authorized Distributor of BLICKLE In Indonesia
PATH series wheels, swivel castors and fixed castors
Light duty wheels and castors with thermoplastic polyurethane tread and nylon wheel centre
The tread of the PATH series is made of high-quality thermoplastic polyurethane with a hardness of 94 Shore A. This is cast onto the high-quality nylon 6 wheel centre and forms a strong chemical bond. It is also non-marking and non-staining. The PATH series is characterised by very low rolling and swivel resistance.
The PATH series is used for tool trolleys, dollies and hygiene applications in the food industry and elsewhere.
The tread of the PATH series is made of high-quality thermoplastic polyurethane with a hardness of 94 Shore A. This is cast onto the high-quality nylon 6 wheel centre and forms a strong chemical bond. It is also non-marking and non-staining. The PATH series is characterised by very low rolling and swivel resistance.
The PATH series is used for tool trolleys, dollies and hygiene applications in the food industry and elsewhere.
The wheels in the PATH series are available in sizes 50 to 125 mm as standard. Blickle provides ball bearing and plain bore versions. The wheels are also available in an electrically conductive version or with ball bearing seals.
The wheels in the PATH series are available with the following brackets with top plate fitting.
LPA/LKPA series: Light duty swivel bracket with top plate fitting
LPA/LKPA series: Light duty swivel bracket with top plate fitting
As an alternative to other fitting types, the wheels in the PATH series are also available with the following bracket series with a bolt hole fitting.
LRA/LKRA series: Light duty swivel bracket with bolt hole
LRA/LKRA series: Light duty swivel bracket with bolt hole

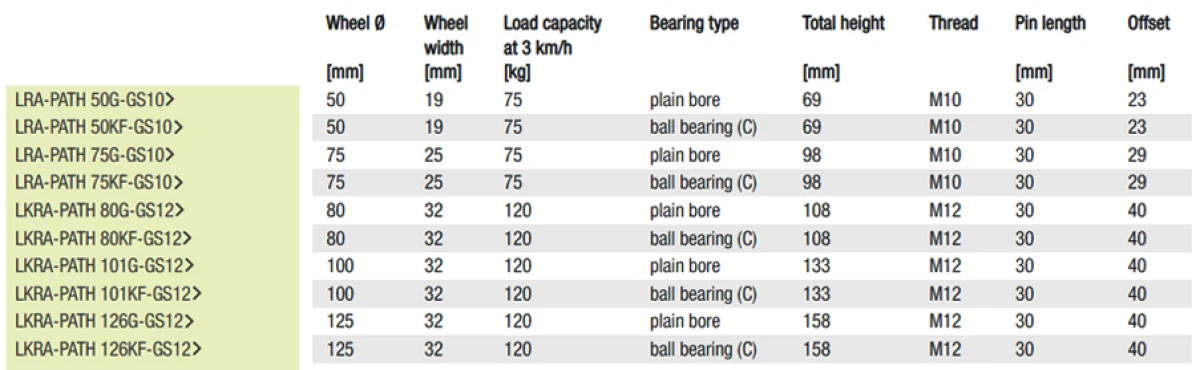

The PATH series is available with the following bracket series with a threaded pin fitting type:
LRA/LKRA series: Light duty swivel bracket with threaded pin
LRA/LKRA series: Light duty swivel bracket with threaded pin

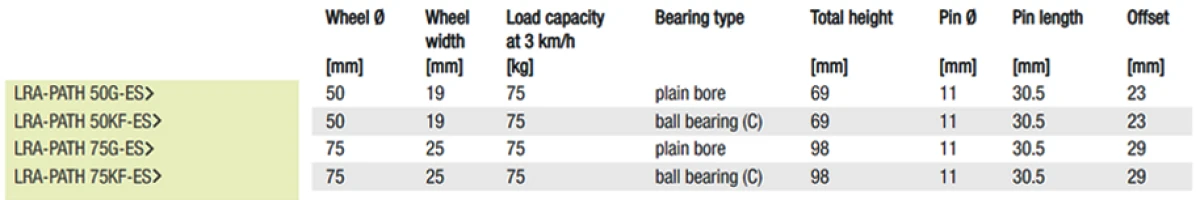

PATH wheels can be combined with the following bracket series with a plug-in pin fitting type:
LRA series: Light duty swivel bracket with plug-in pin
LRA series: Light duty swivel bracket with plug-in pin
The PATH series is available with the following fixed brackets for the available swivel castors:
BPA/BKPA series: Light duty fixed bracket with top plate fitting
BRA/BKRA series: Light duty fixed bracket with bolt hole
BPA/BKPA series: Light duty fixed bracket with top plate fitting
BRA/BKRA series: Light duty fixed bracket with bolt hole
The wheels in the PATH series can be provided as twin castors with the following bracket series:
LDA series: Light duty twin wheel swivel bracket with top plate fitting
LMDA series: Light duty twin wheel swivel bracket with bolt hole
LDA series: Light duty twin wheel swivel bracket with top plate fitting
LMDA series: Light duty twin wheel swivel bracket with bolt hole
