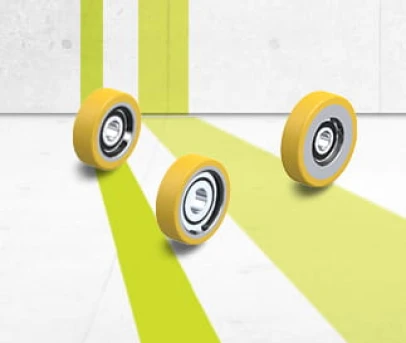

FSTH Guide roller series
Guide rollers with polyurethane tread Blickle Extrathane® and steel wheel centre
The FSTH guide roller series has a steel wheel centre with a cast Blickle Extrathane® polyurethane tread. The ball bearing is sealed on both sides, pressed into the wheel centre and secured with a locking ring. Like the FSTH wheel series, the FTH guide rollers provides a high resistance to cut and tear propagation, low rolling resistance and low-noise operation. The FSTH series has a higher load capacity than the FTH wheels because of the steel wheel centre. FSTH series guide rollers are frequently used in luggage and sorting systems and cranes.
The FSTH guide roller series has a steel wheel centre with a cast Blickle Extrathane® polyurethane tread. The ball bearing is sealed on both sides, pressed into the wheel centre and secured with a locking ring. Like the FSTH wheel series, the FTH guide rollers provides a high resistance to cut and tear propagation, low rolling resistance and low-noise operation. The FSTH series has a higher load capacity than the FTH wheels because of the steel wheel centre. FSTH series guide rollers are frequently used in luggage and sorting systems and cranes.

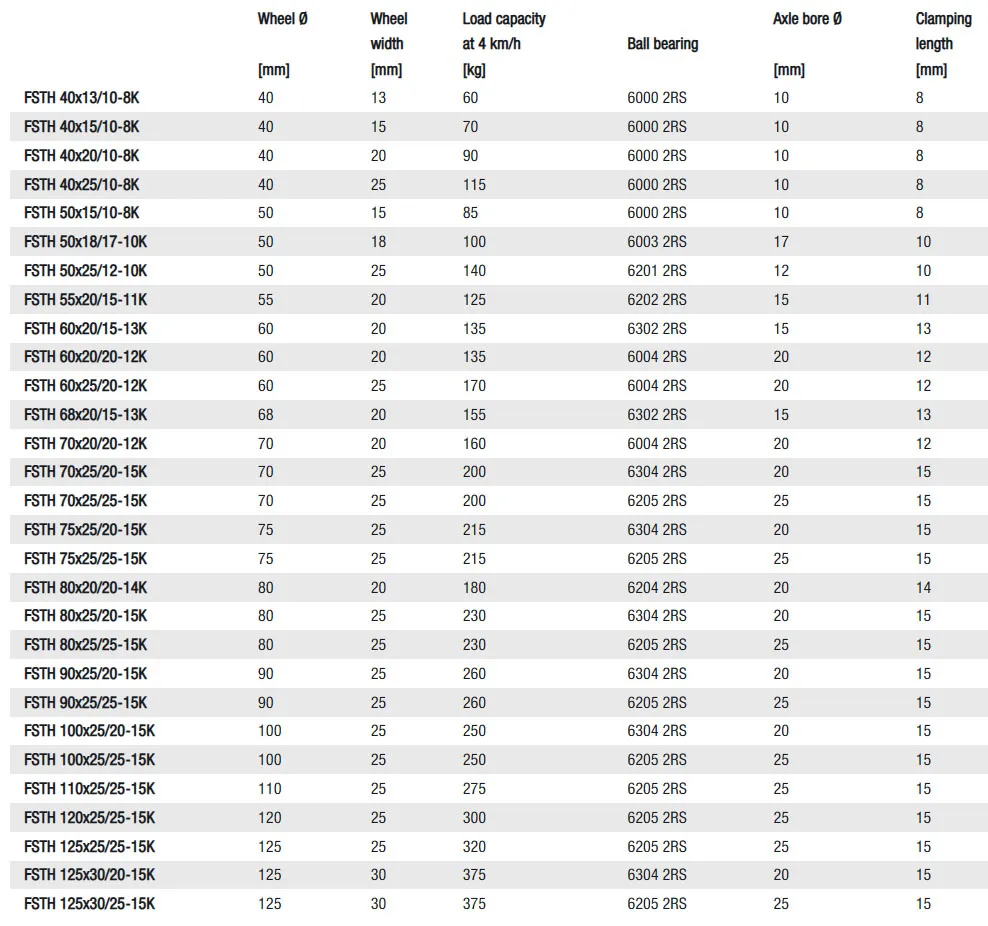

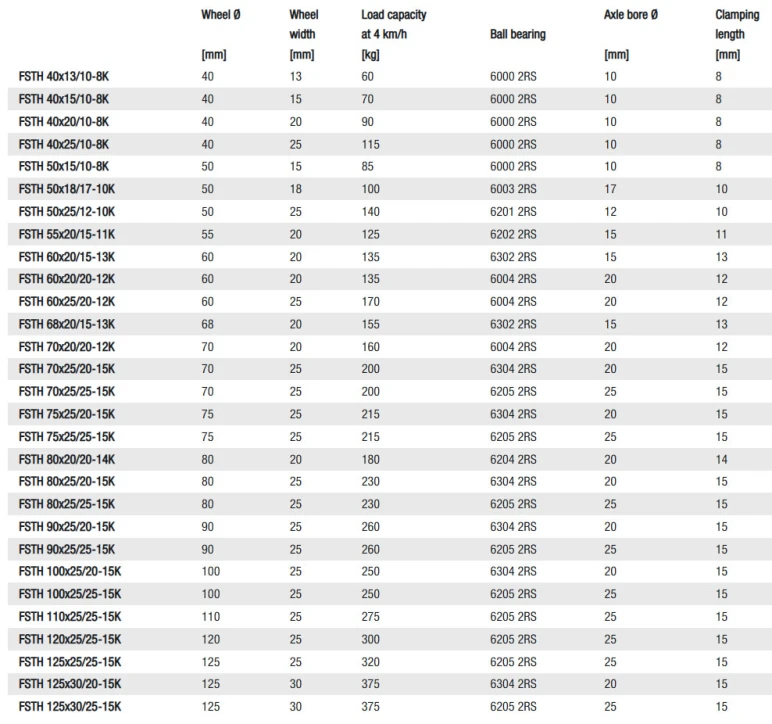

The FSTH guide rollers come in sizes ranging between 40 and 125 mm as standard. Additional details like the wheel width, axle hole diameter or clamping length are available in the table below.
