G…-ELS – Wheel and castor series
Electrically conductive cast iron wheels and castors
The wheels in the G series are made from high-quality grey cast iron. The machined treads and edges have excellent concentricity properties. Due to their hardness of 180 to 220 HB, the wheels also provide excellent rolling and swivel resistance on uneven floors.
Thanks to their robust design, the wheels are suitable for carrying heavy loads, even with a small diameter. The cast iron wheels have an electrical conductivity of ≤ 104 Ω.
The wheels are also used in painting systems and autoclaves.
The wheels in the G series are made from high-quality grey cast iron. The machined treads and edges have excellent concentricity properties. Due to their hardness of 180 to 220 HB, the wheels also provide excellent rolling and swivel resistance on uneven floors.
Thanks to their robust design, the wheels are suitable for carrying heavy loads, even with a small diameter. The cast iron wheels have an electrical conductivity of ≤ 104 Ω.
The wheels are also used in painting systems and autoclaves.

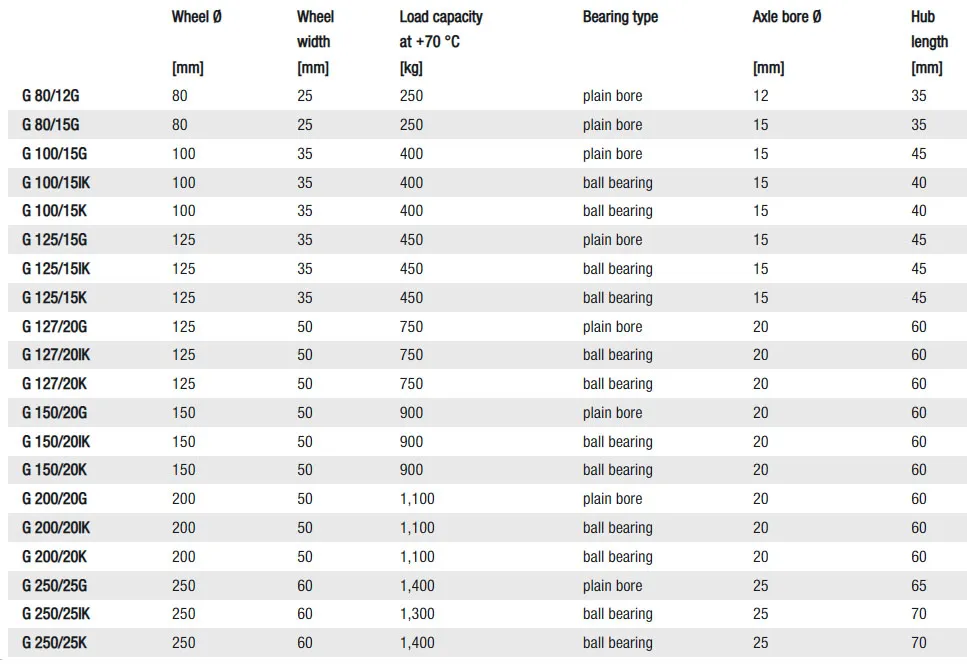

The wheels in the G series come in sizes ranging between 80 and 250 mm. Blickle provides ball bearing and plain bore versions. The wheels are also available with a heat-resistant ball bearing. This can be used up to a temperature of 300 °C.
The G wheel series is available with a variety of bracket series with a plate fitting for a wide range of applications as standard. Blickle’s bracket series vary in terms of their design and load capacity, from a standard pressed steel swivel castor through to a welded steel heavy duty swivel castor:
L series: Pressed steel swivel bracket with top plate fitting, medium duty design
LK series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LH series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LO series: Heavy duty welded steel swivel bracket with top plate fitting
LS series: Heavy duty welded steel swivel bracket with top plate fitting, heavy duty swivel head
LI series: Heat-resistant pressed steel swivel bracket with top plate fitting, medium duty design
LIO series: Heat-resistant heavy duty welded steel swivel bracket with top plate fitting
L series: Pressed steel swivel bracket with top plate fitting, medium duty design
LK series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LH series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LO series: Heavy duty welded steel swivel bracket with top plate fitting
LS series: Heavy duty welded steel swivel bracket with top plate fitting, heavy duty swivel head
LI series: Heat-resistant pressed steel swivel bracket with top plate fitting, medium duty design
LIO series: Heat-resistant heavy duty welded steel swivel bracket with top plate fitting
The G wheel series can be combined with the following fixed castor brackets:
B series: Pressed steel fixed bracket with top plate fitting, medium duty design
BK series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BO series: Heavy duty welded steel fixed bracket with top plate fitting
BS series: Heavy duty welded steel fixed bracket with top plate fitting
BI series: Heat-resistant pressed steel fixed bracket with top plate fitting
BIK series: Heat-resistant pressed steel fixed bracket with top plate fitting, heavy duty design
B series: Pressed steel fixed bracket with top plate fitting, medium duty design
BK series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BO series: Heavy duty welded steel fixed bracket with top plate fitting
BS series: Heavy duty welded steel fixed bracket with top plate fitting
BI series: Heat-resistant pressed steel fixed bracket with top plate fitting
BIK series: Heat-resistant pressed steel fixed bracket with top plate fitting, heavy duty design
