GST Wheel and castor series
The tread of the heavy duty wheels and castors in the GST series is made using the high-quality polyurethane-elastomer Blickle Softhane®. This is cast onto a wheel centre made of rugged grey cast iron. The extra-thick tread with a hardness of 75 Shore A provides good floor surface preservation and smooth rolling performance.
The wheels of the GST series are primarily used in intralogistics when transporting heavy loads on uneven surfaces.
The wheels of the GST series are primarily used in intralogistics when transporting heavy loads on uneven surfaces.
The GST series has diameters ranging between 125 and 400 mm as standard and are available with a ball bearing. An antistatic version with a grey tread is also available. The wheels are also available as a drive wheel GSTN (series) or a hub fitting wheel GSTA (series) .
The wheels in the GST series are available in combination with various Blickle bracket series with a top plate fitting. These bracket series range from medium duty pressed steel swivel brackets through to heavy duty swivel brackets in welded steel:
LH series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LUH series: Pressed steel swivel bracket with top plate fitting, heavy duty enclosed design
LO series: Heavy duty welded steel swivel bracket with top plate fitting
LS series: Heavy-duty welded steel swivel bracket, heavy-duty swivel head
LH series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LUH series: Pressed steel swivel bracket with top plate fitting, heavy duty enclosed design
LO series: Heavy duty welded steel swivel bracket with top plate fitting
LS series: Heavy-duty welded steel swivel bracket, heavy-duty swivel head

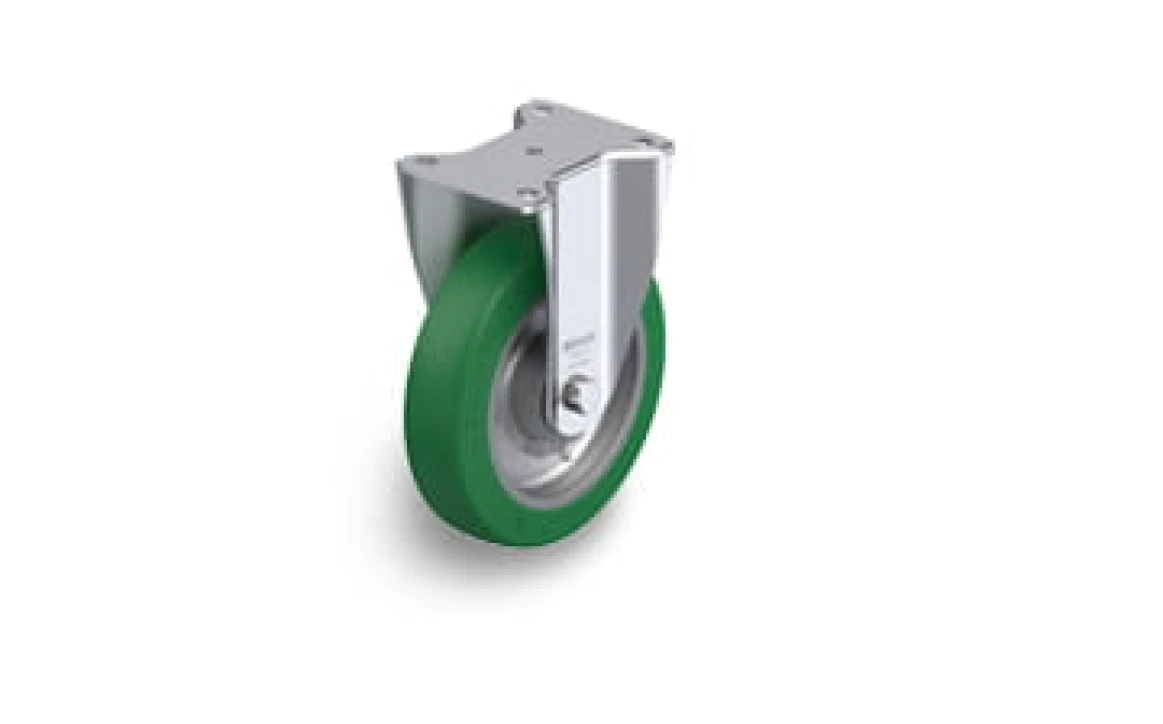

The GST wheel series can be combined with the following fixed brackets:
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BO series: Heavy duty welded steel fixed bracket with top plate fitting
BS series: Heavy duty welded steel fixed bracket with top plate fitting, heavy duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BO series: Heavy duty welded steel fixed bracket with top plate fitting
BS series: Heavy duty welded steel fixed bracket with top plate fitting, heavy duty design
The wheels in the GST series are available as twin castors in combination with the welded steel LSD and BSD bracket series:
LSD series: Heavy duty welded steel swivel bracket with top plate fitting, heavy duty swivel head
BSD series: Heavy duty welded steel fixed bracket with top plate fitting, heavy duty design
LSD series: Heavy duty welded steel swivel bracket with top plate fitting, heavy duty swivel head
BSD series: Heavy duty welded steel fixed bracket with top plate fitting, heavy duty design
