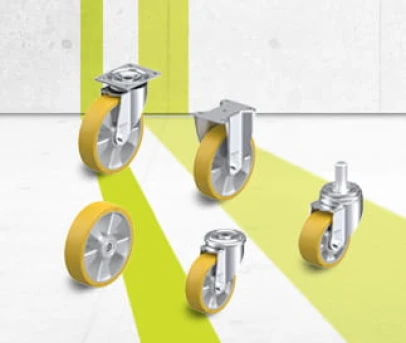

ALTH Wheel and castor series
Heavy duty wheels and castors with Blickle Extrathane® polyurethane tread and aluminium wheel centre
The wheels in the ALTH series are made of a die-cast aluminium wheel centre with a high-quality polyurethane-elastomer Blickle Extrathane® tread. The tread has a hardness of 92 Shore A and combines a lot of different properties, such as outstanding cut and tear propagation resistance, high load capacities and a high level of floor surface preservation.
The ALTH wheel series is used for transport units in the logistics and machine and systems engineering sectors addition to a number of other applications.
The wheels in the ALTH series are made of a die-cast aluminium wheel centre with a high-quality polyurethane-elastomer Blickle Extrathane® tread. The tread has a hardness of 92 Shore A and combines a lot of different properties, such as outstanding cut and tear propagation resistance, high load capacities and a high level of floor surface preservation.
The ALTH wheel series is used for transport units in the logistics and machine and systems engineering sectors addition to a number of other applications.

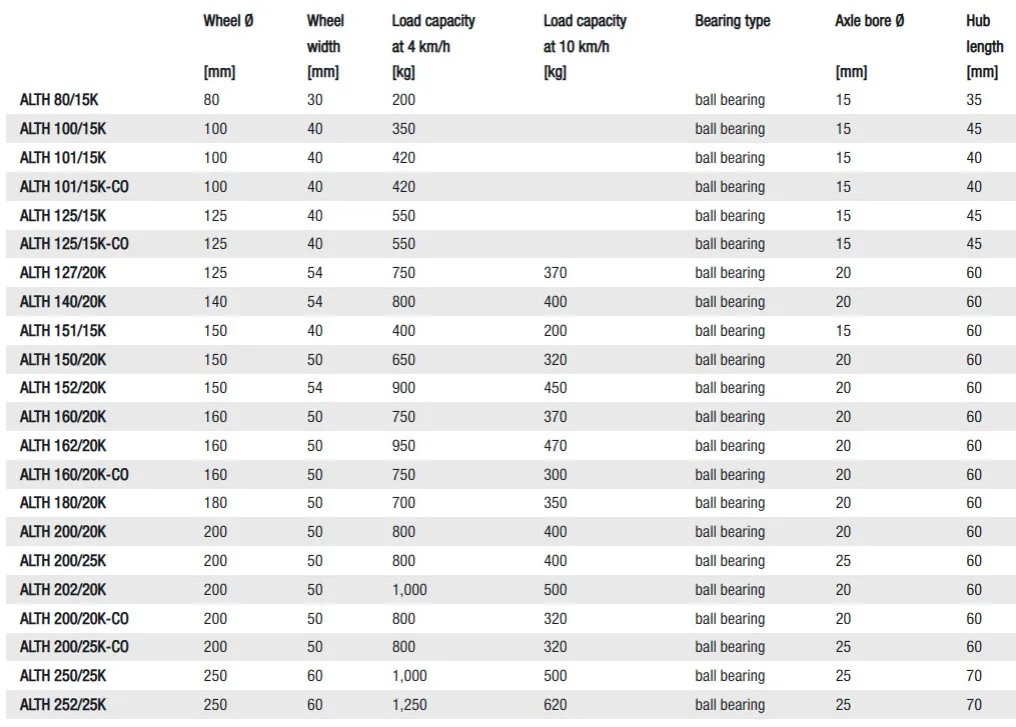

The wheels in the ALTH series come in sizes ranging between 80 and 250 mm as standard. The wheels have a ball bearing. An antistatic version with a grey tread is also available.

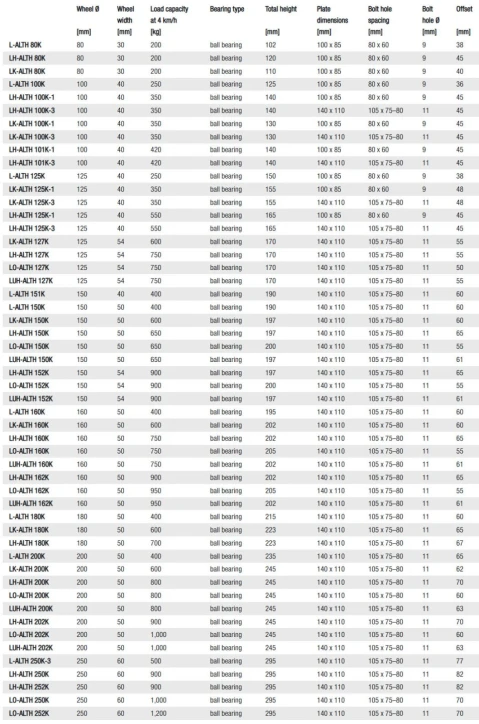

The wheels in the ALTH series are also available as castors with a top plate in combination with various Blickle bracket series. These bracket series range from medium duty pressed steel swivel brackets through to heavy duty brackets in welded steel:
L series: Pressed steel swivel bracket with top plate fitting, medium duty design
LK series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LH series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LUH series: Pressed steel swivel bracket with top plate fitting, heavy duty enclosed design
LO series: Heavy duty welded steel swivel bracket with top plate fitting
L series: Pressed steel swivel bracket with top plate fitting, medium duty design
LK series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LH series: Pressed steel swivel bracket with top plate fitting, heavy duty design
LUH series: Pressed steel swivel bracket with top plate fitting, heavy duty enclosed design
LO series: Heavy duty welded steel swivel bracket with top plate fitting

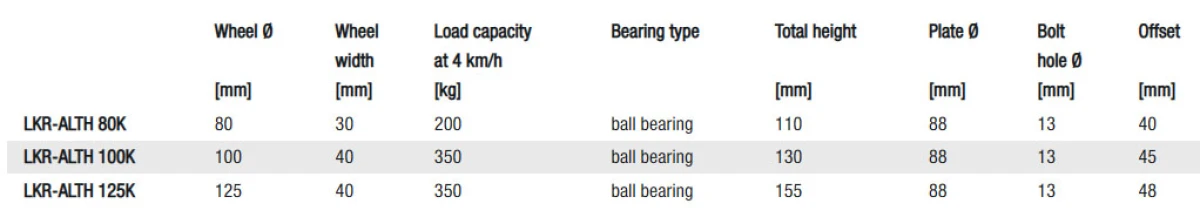

As an alternative to the plate fitting, the ALTH series is also available with a bolt hole fitting:
LKR series: Pressed steel swivel bracket with bolt hole, heavy duty design
LKR series: Pressed steel swivel bracket with bolt hole, heavy duty design

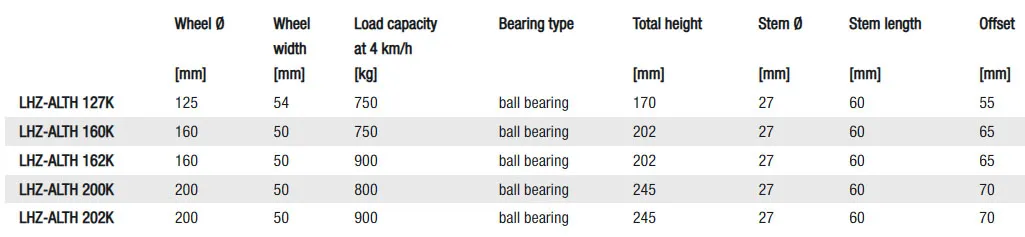

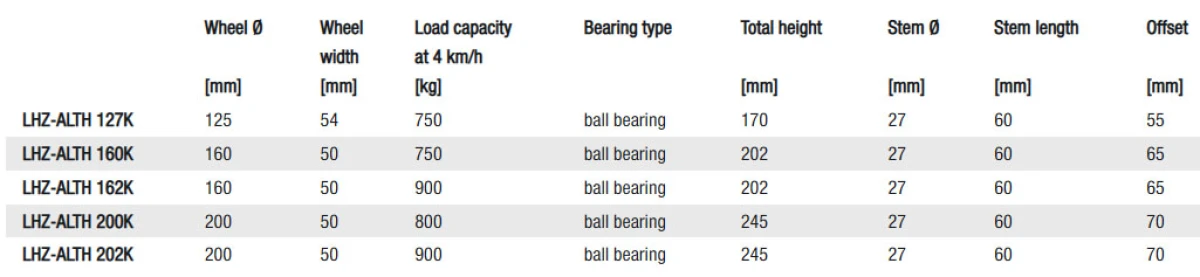

The ALTH series is available with a stem fitting as an alternative to a plate or bolt hole fitting. The following bracket series is available:
LHZ series: Pressed steel swivel bracket with stem, heavy duty design
LHZ series: Pressed steel swivel bracket with stem, heavy duty design

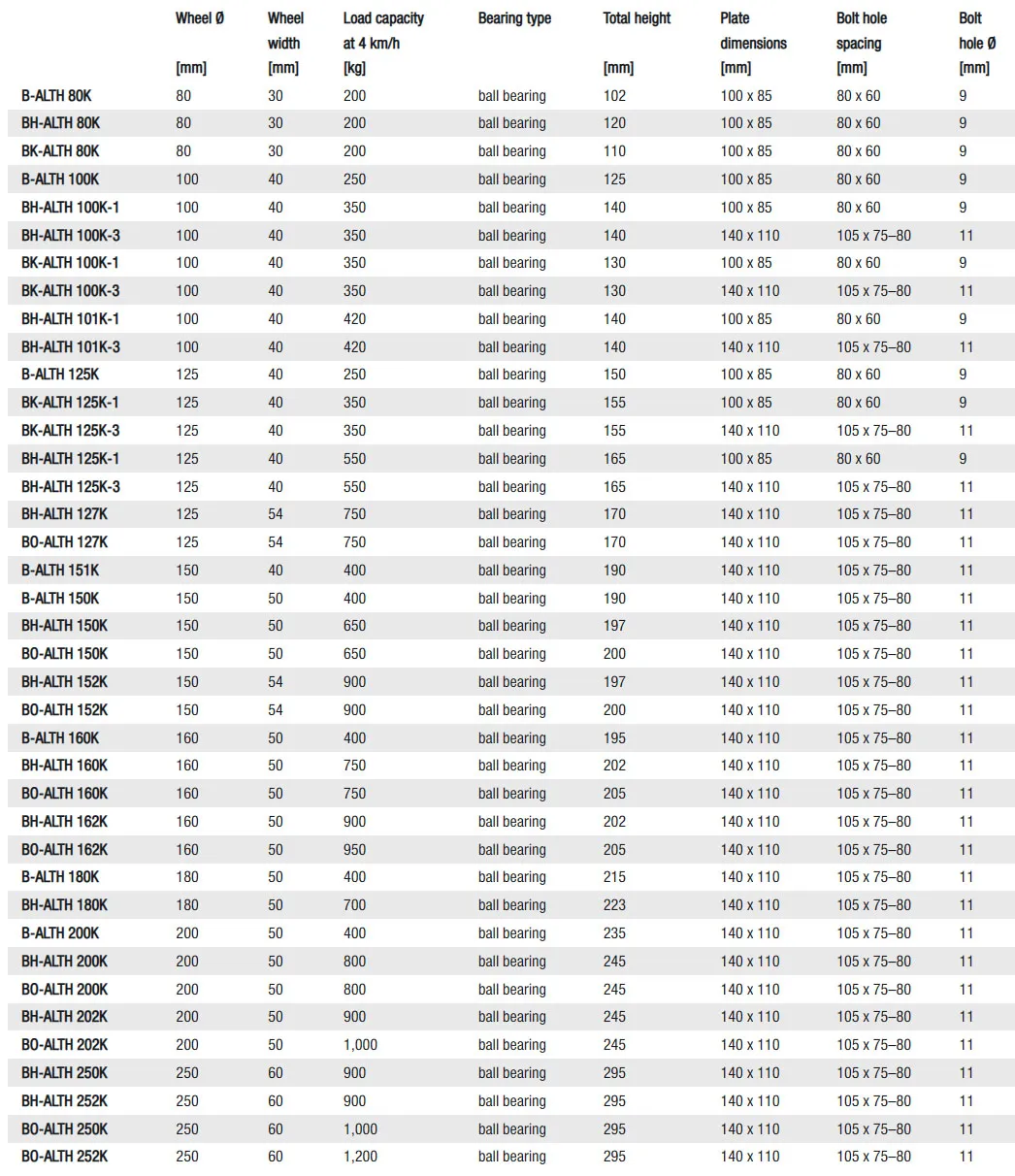

Blickle also provides suitable castors with fixed brackets corresponding to the various swivel castor series:
B series: Pressed steel fixed bracket with top plate fitting, medium duty design
BK series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BO series: Heavy duty welded steel fixed bracket with top plate fitting
B series: Pressed steel fixed bracket with top plate fitting, medium duty design
BK series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BH series: Pressed steel fixed bracket with top plate fitting, heavy duty design
BO series: Heavy duty welded steel fixed bracket with top plate fitting

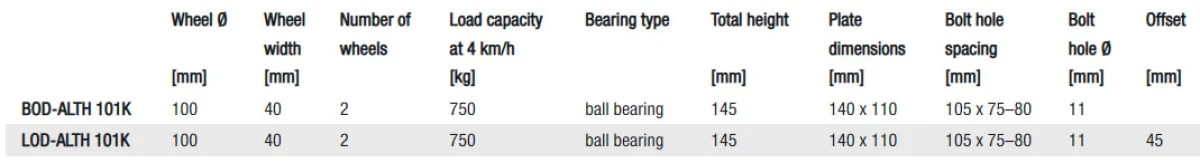

The ALTH series is also available as a twin castor. The following bracket series are used for this purpose:
LOD series: Heavy duty welded steel swivel bracket with top plate fitting
BOD series: Heavy duty welded steel fixed bracket with top plate fitting
LOD series: Heavy duty welded steel swivel bracket with top plate fitting
BOD series: Heavy duty welded steel fixed bracket with top plate fitting
