Intralogistic - Improve the efficiency of material flows

HYDRO SYSTEMS KG is a global leader in the market for machinery and equipment used to maintain, repair and assemble civil and military aircraft. The company is based in Biberach in the German state of Baden-Württemberg, with branches and service centres in Germany, France, the United Kingdom, China, Singapore, the UAE and the USA. It provides innovative and high-quality solutions for customers in more than 120 countries.

Blickle’s challenge was to design castors for stands used to transport jet engines. These stands are used to transport heavy engines so that they can be reinstalled after maintenance and repair work. The equipment transports engines safely so that they are in just the right position for assembly. In many cases, they also have to deal with extreme temperatures, UV radiation and rough terrain.

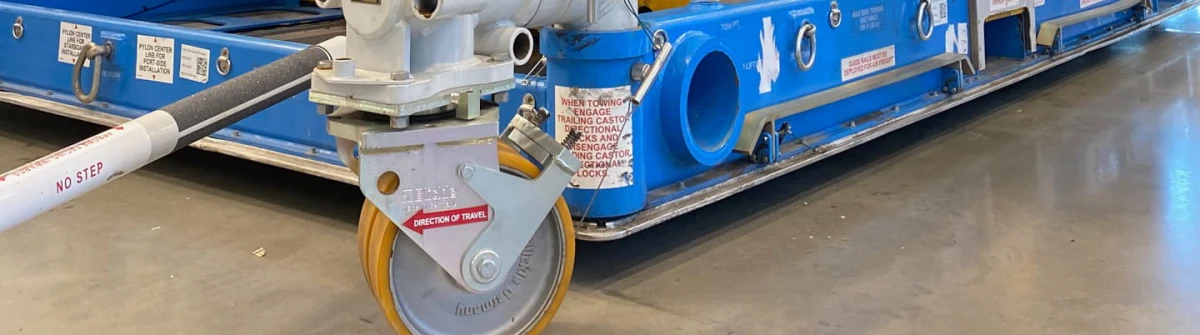

Blickle developed a special twin wheel castor for HYDRO using the high-strength wheels of the GTH series. These have a super-stable wheel body made of grey cast iron and a high-quality Blickle Extrathane polyurethane tread. Each stand uses four welded steel twin wheel castors to make sure that the heavy engines are moved safely and surely, even over uneven surfaces.

The castors are also equipped with a directional lock. The swivel head can be locked in position with a locking pin to keep goods moving in the right direction. Once the stand reaches the aircraft, the swivelling castors help to position the engine with precision. The Radstop wheel brake provides extremely high brake forces to keep the stand secure and stable during assembly, even under a heavy load. This makes the work involved much easier and safer, while also preventing damage to the engine.
